Package Science Services

Instrumentation

• Tektronix CSA8200 DSO, TDR

  80E04 Dual TDR/TDT 20GHz Sampling Module (2)

  80E01 50GHz Sampling Module (2)

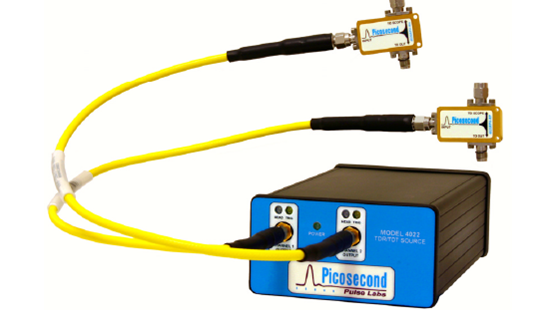

  Picosecond Labs Pulse



• HP/Agilent 8753 Vector Network Analzer

300KHz - 3GHz - -Low frequency characterization

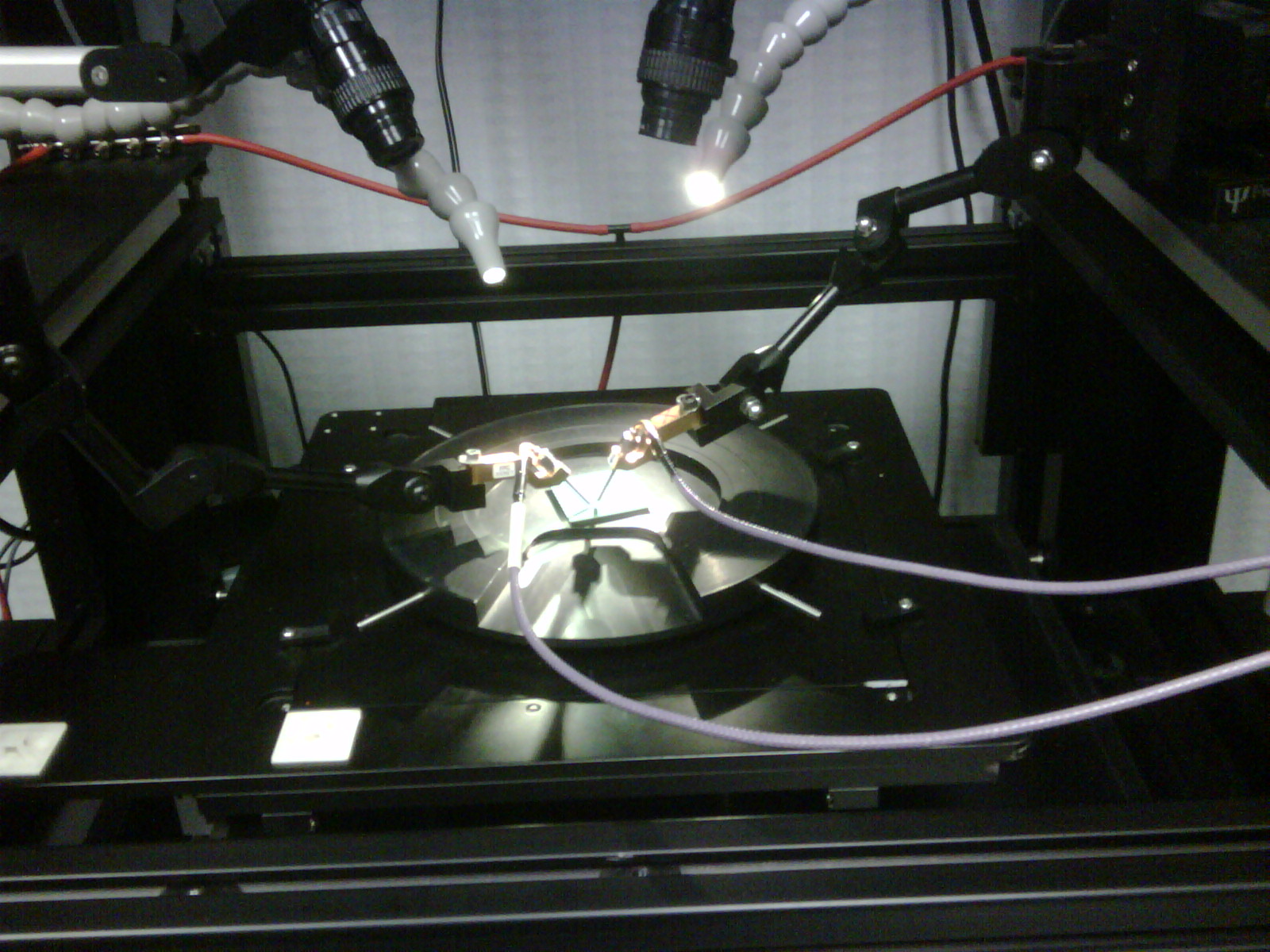

• Probe Solutions 2020VH Probe Station

Vibration isolated support, horizontal and vertical fixturing, 6-axis manipulators

Up to 22" square probe area from one or both sides.  Custom  XYQ stage added for increased versatility for horizontal measurement configurations.



• Cascade Microtech

  Fixed-pitch DC-40GHz, Fine pitch Microprobes, various pitches and GS configuration, differential and special use



• Gigaprobes

  Differential high-frequency probe. Click here for more information.



• Tektronix

  Differential and signal ground (SG)



• Calibration

Full array of calibration standards, substrates and references



• Cables and Hardware

Extremely high quality cables, connectors and adaptors used in all configurations.  Connections secured with calibrated torque wrenches.



• Related Support Instruments

Agilent/HP:

    34970A Data Acquisition DMM

    34420A Nano-voltmeter

    53131A Frequency Counter with 3Ghz port

    34401A 6.5 Digit DMM

    6181C Precision Current Source (HP)

    6234A Power Supply (HP)

    6282A Power Supply (HP)



Keithley:

    196 System DMM

    6621 Precision Current Source

    1281A Nano-voltmeter

    7000 Series Switch Matrix



Fluke:

    2635A Data Bucket Acquisition system



Power Supplies:

    GenTek, B&K, Lambda





Also Available:

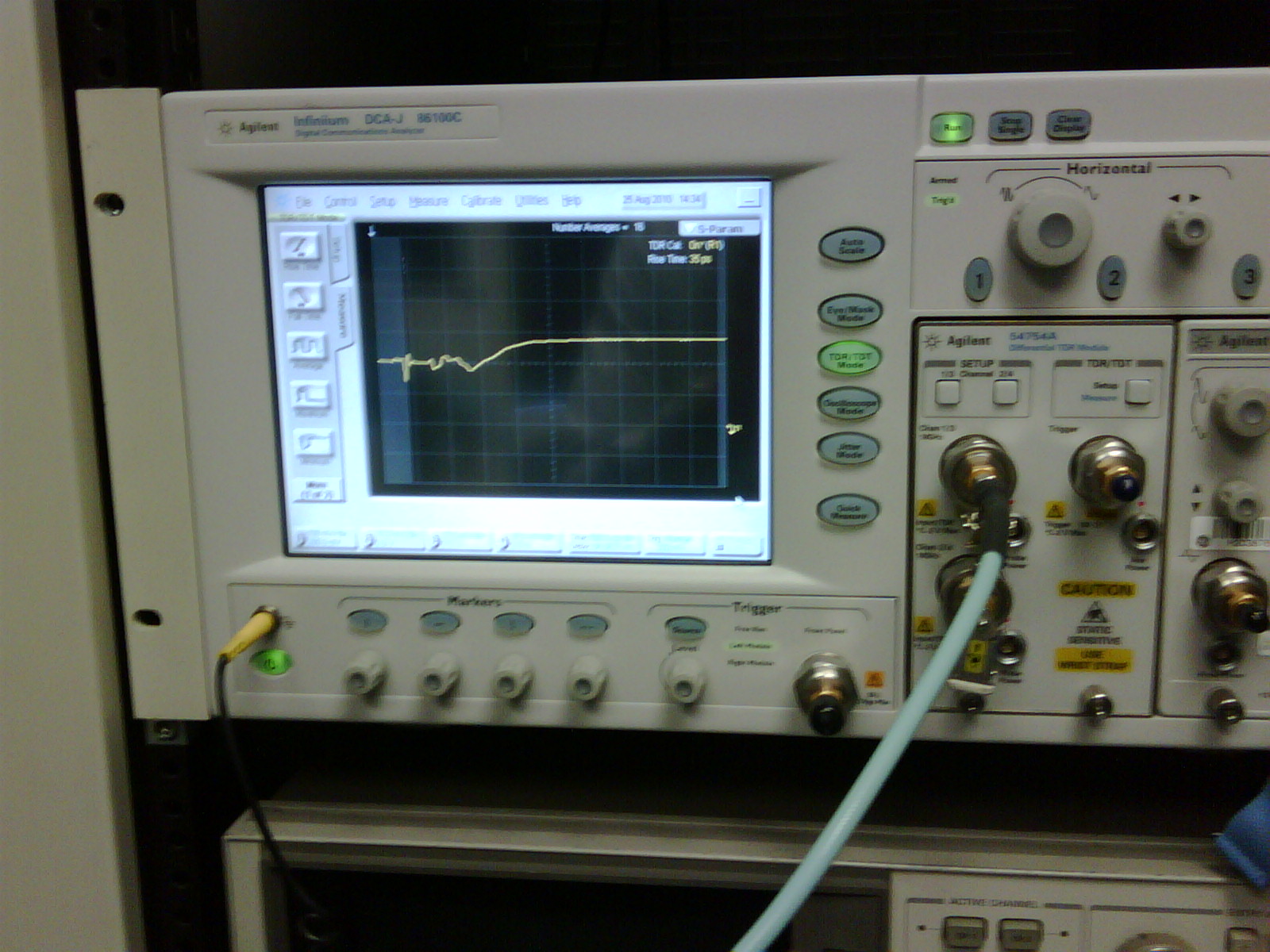

• Agilent DCA-J 86100C Communications Analyzer, TDR, DSO

  Tektronix 11801C DSO

  Agilent 8753D VNA 6GHz

  54754A TDR/TDT Module / 86112A 20GHz Dual Channel Electrical Module



Our lab and staff are ESD protected during instrumentation use and sample handling.
